Improving Aerodynamic Flow Quality in Existing Wind Tunnels

In the commercial vertical wind tunnel (VWT) industry, the quality of the airflow in your flight chamber is the actual product. If the wind is turbulent, uneven, or prone to sudden velocity drops, flyers experience a bumpy, unstable ride. For professional skydivers training high-speed dynamic maneuvers, poor airflow is not just frustrating—it is dangerous.

Over time, thermal expansion, structural wear, or degraded turning vane geometries can ruin a tunnel's aerodynamic flow quality. This guide looks at the root causes of internal turbulence and explains why upgrading your turning vanes wind tunnel structures is the single most effective way to restore a smooth flight experience.

---

1. What Causes Turbulence in a Vertical Wind Tunnel?

Turbulence occurs when air cannot travel through the tunnel loop in a clean, uniform direction. In a closed-circuit VWT, this is usually caused by:

• Boundary Layer Separation: To complete a full loop, air must turn 90 degrees at four different corners. If the air cannot make these turns cleanly, it separates from the duct walls, forming slow, spinning eddies and low-pressure pockets.
• Flow Obstructions: Legacy radiator cooling grids placed directly in the air path act as drag barriers, causing micro-turbulences that travel straight into the flight chamber.
• Deformed Turning Vanes: Corroded, misaligned, or vibrating guide vanes fail to split the air column properly, leading to uneven air speeds across the chamber.

---

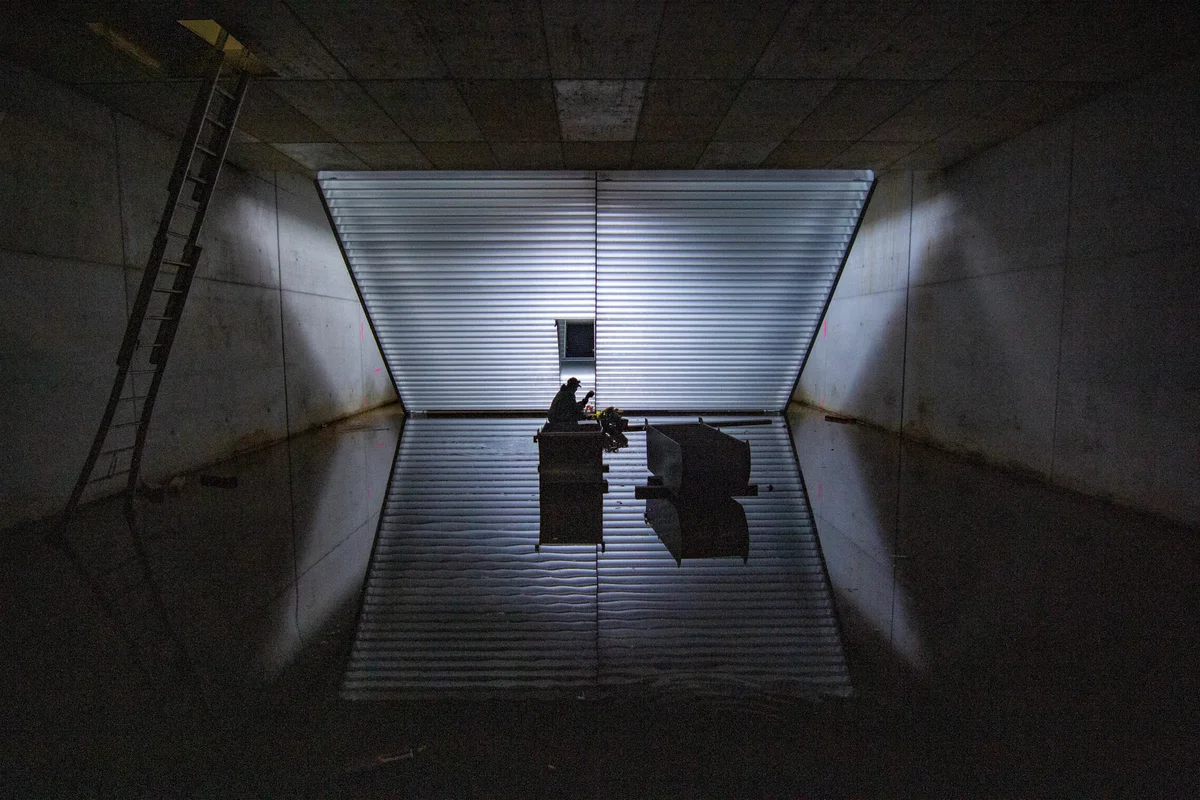

2. Upgrading Turning Vanes: The Aerodynamic Solution

The most effective way to eliminate turbulence is to upgrade the turning vane assemblies at each corner:

• The Job of Turning Vanes: These curved aerodynamic profiles split the massive air column into thin, manageable layers, redirecting them 90 degrees with minimal loss of velocity or pressure.
• NACA-Profile Engineering: Modern, precision-engineered NACA-profile turning vanes prevent boundary layer separation, ensuring the wind exits the corners with a perfectly flat velocity profile.
• Vibration Control: Guide vanes must remain completely rigid under load. If they vibrate, they inject pulsing pressure waves into the air stream, causing the wind in the flight chamber to pulse. Upgrading to rigid composite or carbon-fiber vanes eliminates this structural vibration.

---

3. Benefits of Upgrading to Low-Turbulence Turning Vanes

Comparing old-style turning corners with modern engineered systems highlights the operational improvements:

---

4. Operational Indicators of Poor Flow Quality

It is time to audit your aerodynamic loop if:

• Flyers report "pockets" of weak air or sudden drops in wind speed in certain areas of the flight chamber.
• The VWT walls or glass chamber experience visible vibration or shaking at high wind speeds (above 240 km/h).
• The main fan motors require more power (kW) than standard specifications to maintain basic flight speeds.

---

5. Conclusion: Flow Quality is Your Core Product

Investing in wind tunnel turbulence reduction upgrades directly improves customer satisfaction, reduces noise, and cuts utility bills. By replacing worn or misaligned turning vanes wind tunnel structures, operators can reduce energy losses by up to 30%.

To receive a CFD aerodynamic simulation of your existing tunnel flow or to discuss a turning vane modernization project, contact the engineering team at TunnelTech.
