Types of Wind Tunnels: Horizontal, Vertical, Inclined

Every wind tunnel project starts with a question that sounds trivial and decides everything downstream: which way does the air move?

Get it right and the building, the power connection, the instrumentation and the business model line up behind one clear engineering goal. Get it wrong and you end up with a facility that technically works and commercially doesn't — a research tunnel that can't host paying flyers, or a flight chamber that can't produce a publishable measurement.

The three main types of wind tunnels in use today — horizontal, vertical and inclined — are not three sizes of the same product. They serve different physics, different customers and different revenue models. Here is how to tell which one your project actually needs.

1. What flow orientation really decides

The orientation of the flow determines what you can put into it.

In a horizontal tunnel, the object under test is held in place by a sting, a strut or a force balance. Gravity acts across the flow, not against it. The tunnel's job is to deliver clean, repeatable air over a fixed model and let instruments measure what happens.

In a vertical tunnel, nothing holds the object at all. The air carries it. Drag balances weight, the test subject is a human body, and the entire circuit exists to keep a stable column of air within a few percent of a target speed while a person moves inside it.

In an inclined tunnel, the flow is tilted so that lift and forward motion are simulated simultaneously — the vertical component carries the weight, the horizontal component reproduces glide.

That single choice cascades into everything: chamber geometry, safety systems, fan power, building height, insurance, staffing and what you can charge for.

2. Horizontal wind tunnels: the research workhorse

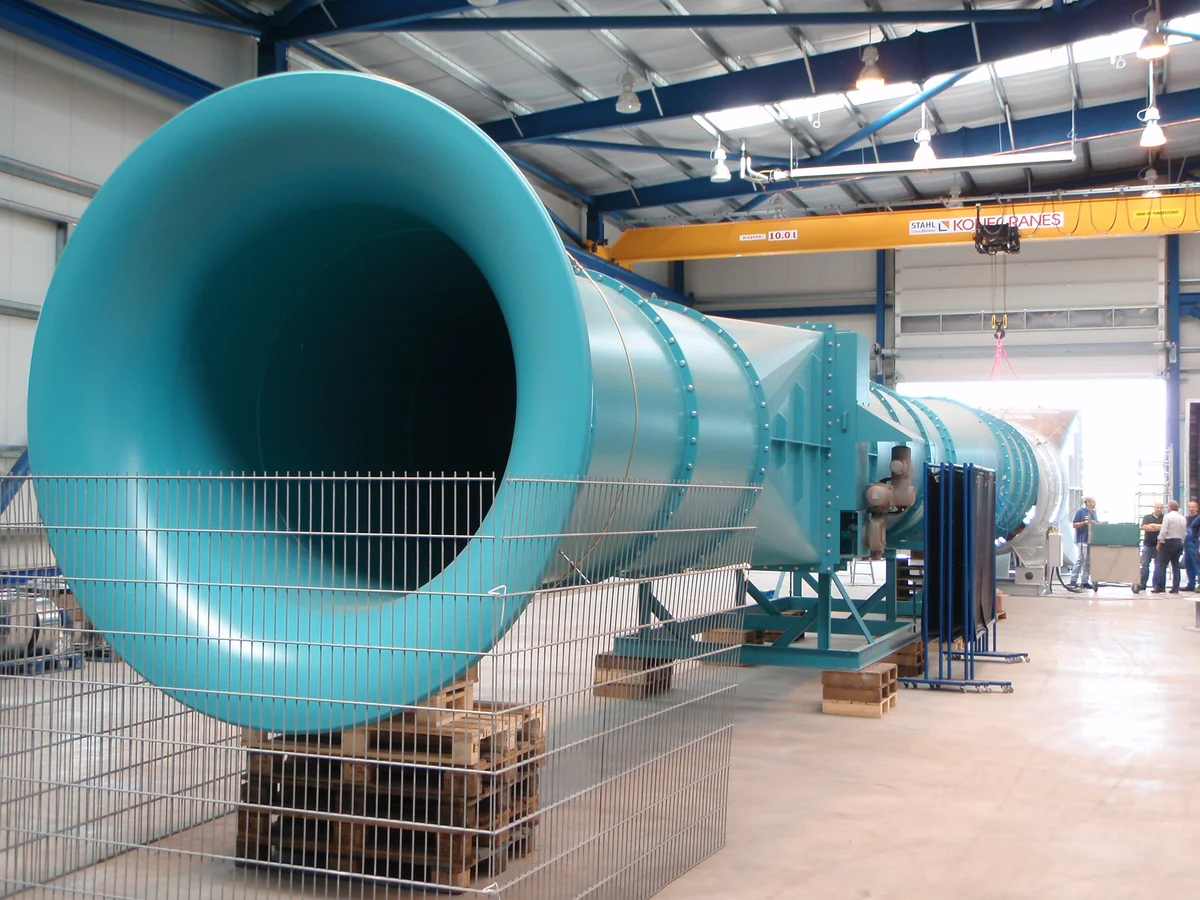

A horizontal tunnel moves air parallel to the ground through a fixed sequence: settling chamber with honeycomb and screens, a contraction that accelerates and smooths the flow, the test section, a diffuser that recovers pressure, and the fan.

Two architectures dominate. Open-circuit (Eiffel) tunnels draw air from the room, push it through once and exhaust it — compact, cheaper to build, sensitive to whatever the room is doing. Closed-circuit (Göttingen) tunnels recirculate the air around a loop with corner turning vanes, which buys flow quality, temperature control and a dramatic drop in running cost. We covered that trade-off in detail in [[article en:closed-circuit-vs-open-circuit-wind-tunnels-for-research|closed-circuit vs open-circuit wind tunnels]].

Horizontal tunnels cover the widest range of applications of any type:

Automotive and motorsport — drag, downforce, cooling flow and aeroacoustics, typically at road-relevant speeds up to 250–300 km/h, with a moving ground plane under the vehicle.
Civil and structural engineering — boundary layer wind tunnels (BLWT) with a long upstream fetch and roughness elements that recreate the atmospheric wind profile over scale models of towers, bridges and stadium roofs.
Metrology and calibration — small, extremely low-turbulence tunnels used to calibrate anemometers and flow sensors under ISO 17025 and IEC 61400-12-1.
Aerospace and UAV development — scale models on a force balance, or small airframes tested full-size, with propellers running.

What the customer is really buying here is measurement: forces and moments from the balance, surface pressures, acoustic maps, flow visualisation. The tunnel is an instrument, and it is judged like one — on turbulence intensity, flow uniformity, repeatability and uncertainty.

3. Vertical wind tunnels: free flight of a human body

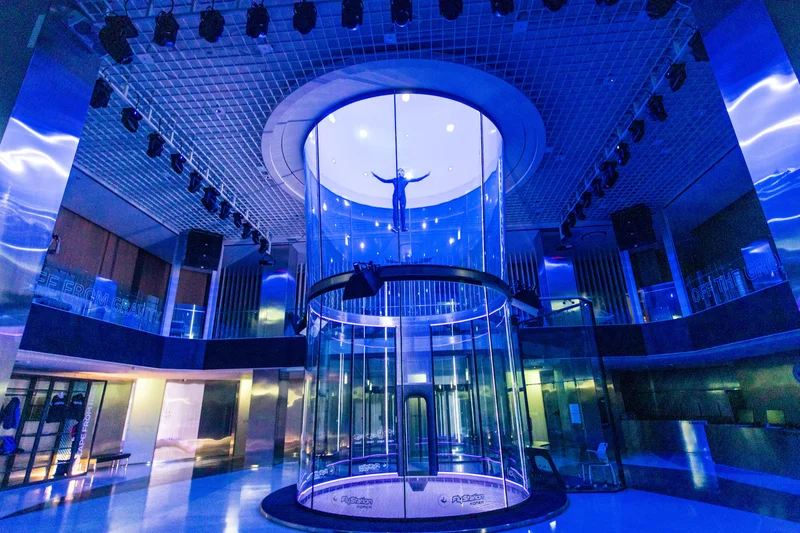

A vertical tunnel does something no horizontal tunnel can: it holds a person in stable free flight. Air moves upward through a flight chamber at a speed matched to the flyer's terminal velocity — roughly 180–200 km/h for a belly-down beginner, considerably more for head-down freestyle — and professional-grade chambers are specified with headroom well beyond that.

Modern commercial designs are recirculating double-loop systems. Air leaves the chamber, is turned through corner vanes, driven by axial fans and returned through a contraction back into the chamber. Drive power scales steeply with chamber diameter: compact models run on roughly 750 kW of fan assembly, standard commercial units around 1,000 kW, professional units up to about 1,260 kW, and some competing 14 ft recirculators draw up to 1,600 kW.

The consequence most first-time investors underestimate is that the building is part of the tunnel. A recirculating vertical tunnel is a multi-storey structure with specific load paths, vibration isolation and acoustic treatment. In our CAPEX breakdown for a commercial vertical tunnel, specialised concrete and structural civil works account for 30–35% of a total investment that generally lands between $4.5M and $12M+ — see [[article en:how-much-does-it-cost-to-build-a-vertical-wind-tunnel|the full cost breakdown]].

The customer base is broader than "indoor skydiving" suggests. Sport and tourism carry the commercial model, but the same chamber trains military freefall teams, police units and rescue crews — a use case we cover in [[article en:custom-vertical-wind-tunnels-military-freefall-halo-haho|custom vertical tunnels for military freefall]].

4. Inclined wind tunnels: the newest branch

An inclined tunnel tilts the flow, typically to somewhere between 30° and 45°. The physics is a straightforward decomposition, and it changes the experience completely.

The vertical component still balances the flyer's weight, exactly as in a vertical tunnel. The horizontal component — around 90–130 km/h at the reference facility — reproduces forward glide. For the first time, a wingsuit pilot can hold a stable glide indoors instead of only falling.

Engineering-wise this is the most demanding of the three. The working zone has to be long, because a glide needs room: the reference facility runs a chamber roughly 10 metres long. Corner turning vanes work at non-standard angles, so the vane geometry cannot simply be lifted from a vertical design without re-solving the pressure loss. Safety nets and suspension systems are needed in more than one plane. There are only a handful of facilities of this type in the world, which is precisely why the design questions are still open — we go deeper into them in [[article en:inclined-wind-tunnel-engineering-design|the dedicated article on inclined tunnel engineering]].

The buyers are resort and entertainment developers looking for a genuinely new attraction, and specialised training centres that need canopy and wingsuit skills without burning aircraft hours.

5. Head-to-head comparison

	Horizontal	Vertical	Inclined
Flow direction	Parallel to the ground	Upward	Tilted, typically 30°–45°
What goes into the flow	Fixed model or airframe on a balance	A human body in free flight	A human body in simulated glide
Typical working speed	Up to 250–300 km/h (subsonic segment); research variants go far higher	Up to ~320 km/h in professional chambers	~90–130 km/h horizontal component
Test section	Closed, open-jet or slotted; sized to the model	Cylindrical or rectangular flight chamber	Long working zone, roughly 10 m at the reference facility
Building impact	Long footprint, moderate height	Multi-storey; the structure is part of the circuit	Long footprint plus height; the hardest to site
Drive power (commercial scale)	Depends entirely on section area and target speed	~750–1,600 kW for 12–17 ft class chambers	Comparable to a large vertical unit, spread over a longer circuit
What the customer buys	Test hours and data	Flight minutes and training	Flight minutes, training, novelty
Primary buyers	Manufacturers, labs, universities, certification bodies	Operators, resorts, armed forces, police	Resort developers, specialised training centres
Judged on	Turbulence, uniformity, measurement uncertainty	Speed stability, chamber comfort, uptime	Glide realism, working-zone length, safety

6. Five questions that decide the type

1. What physically goes into the flow? A model, a full airframe, or a person. This alone eliminates two of the three options in most projects.

2. Do you need numbers or an experience? If the output is a coefficient in a report, you need instrumentation, repeatability and a horizontal test section. If the output is a person walking out grinning, you need a flight chamber.

3. What does the site allow? Horizontal tunnels are long; vertical tunnels are tall; inclined tunnels are both. Ceiling height, foundation capacity and available electrical power constrain the choice earlier and harder than budget does.

4. Who pays, and per what unit? Test hour, flight minute, training seat or research grant. Each implies a different utilisation profile, and utilisation drives energy cost more than installed power does.

5. What has to be measured? A force balance, pressure taps, PIV or acoustic arrays each impose their own requirements on section geometry and access. Retrofitting instrumentation into a chamber that was never designed for it is the most expensive way to discover this.

7. Where the money actually goes

Two decisions dominate lifetime cost, and neither is the tunnel type itself.

The circuit. A closed-circuit tunnel reuses the kinetic energy already in the loop instead of accelerating room air from standstill. At the same size and airspeed, that difference is worth roughly 60–70% of the electricity bill. Over a few years it can exceed the price difference in construction.

The cooling strategy. All the fan energy ends up as heat in the air, and it has to go somewhere. Mechanical chillers add on the order of 20–30% to the facility's electricity bill, and radiator heat exchangers placed inside the duct create a pressure drop that can waste up to 30% of fan power just overcoming drag. Passive ventilation, where the climate allows it, delivers up to 60% savings on cooling — the full arithmetic is in [[article en:energy-consumption-of-wind-tunnels-how-to-cut-costs|wind tunnel energy consumption]].

Installed power is a specification. Energy cost is a function of how you actually run the facility — which is why a realistic utilisation profile belongs in the first design conversation, not the last.

8. Five mistakes we keep seeing

Choosing the type by budget. Budget decides size, not orientation. A cheap tunnel of the wrong type has zero residual value.
Assuming vertical means entertainment. Some of the most demanding vertical tunnel specifications we build are for military and police training, not for tourists.
Underestimating civil works. On a commercial vertical tunnel, structure and concrete are a third of the budget. Treating the building as "the shell around the equipment" breaks the financial model early.
Buying speed that will never be used. Top speed drives fan power, transformer size and grid connection cost. Specify it from the actual flight or test profile, not from a competitor's brochure.
Leaving instrumentation until commissioning. Balances, traverses and optical access have to exist in the aerodynamic design, not be bolted on afterwards.

9. Choosing with confidence

There is no "best" wind tunnel type — there is a type that matches the object in your flow, the site you have and the revenue you intend to earn. Horizontal tunnels sell measurement. Vertical tunnels sell flight. Inclined tunnels sell a glide that until recently existed only outdoors.

If you already know what needs to go into the airflow, the type is usually decided within one engineering conversation. If you're still weighing options, the fastest way forward is a specification review: available site, target speed, working-zone size and what has to be measured.

Talk to our engineering team — we design, manufacture, install and commission custom wind tunnels across all three architectures, with single-point responsibility from concept to handover.
