TT52 PRO

Overview

Impressively spacious, TT52 PRO offers a unique and exhilarating flying experience for both amateur and professional flyers. The enlarged flight chamber allows to practice all modern indoor skydiving competition disciplines including 8-way formation and dynamic disciplines. TT52 PRO is the perfect venue to host world championships and other high-level indoor skydiving competitions. Its exceptional performance, safety, and energy efficiency make it an attractive choice for event organizers and competitors alike. Best suitable for highly populated areas with competing 14ft indoor skydiving projects.

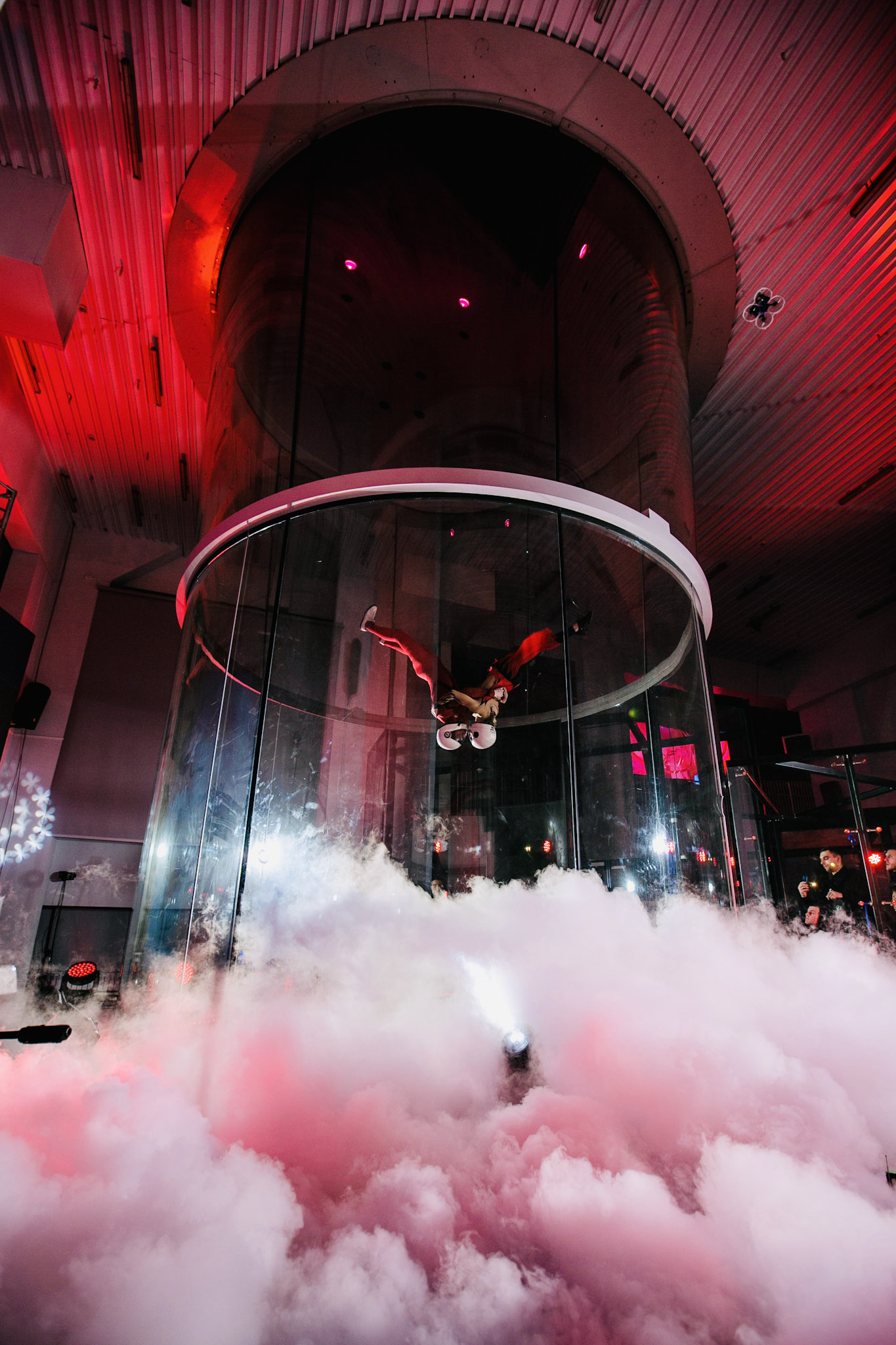

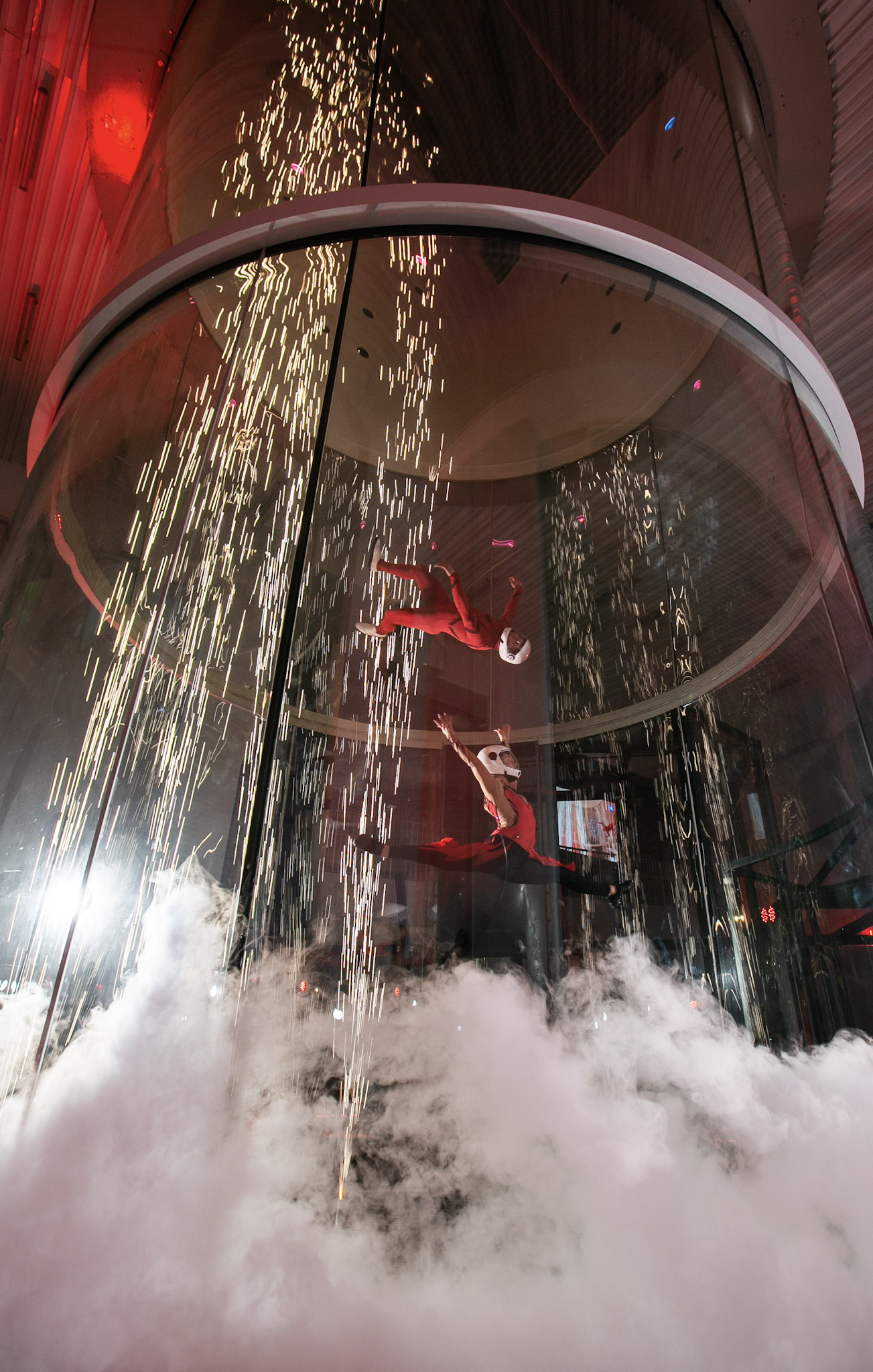

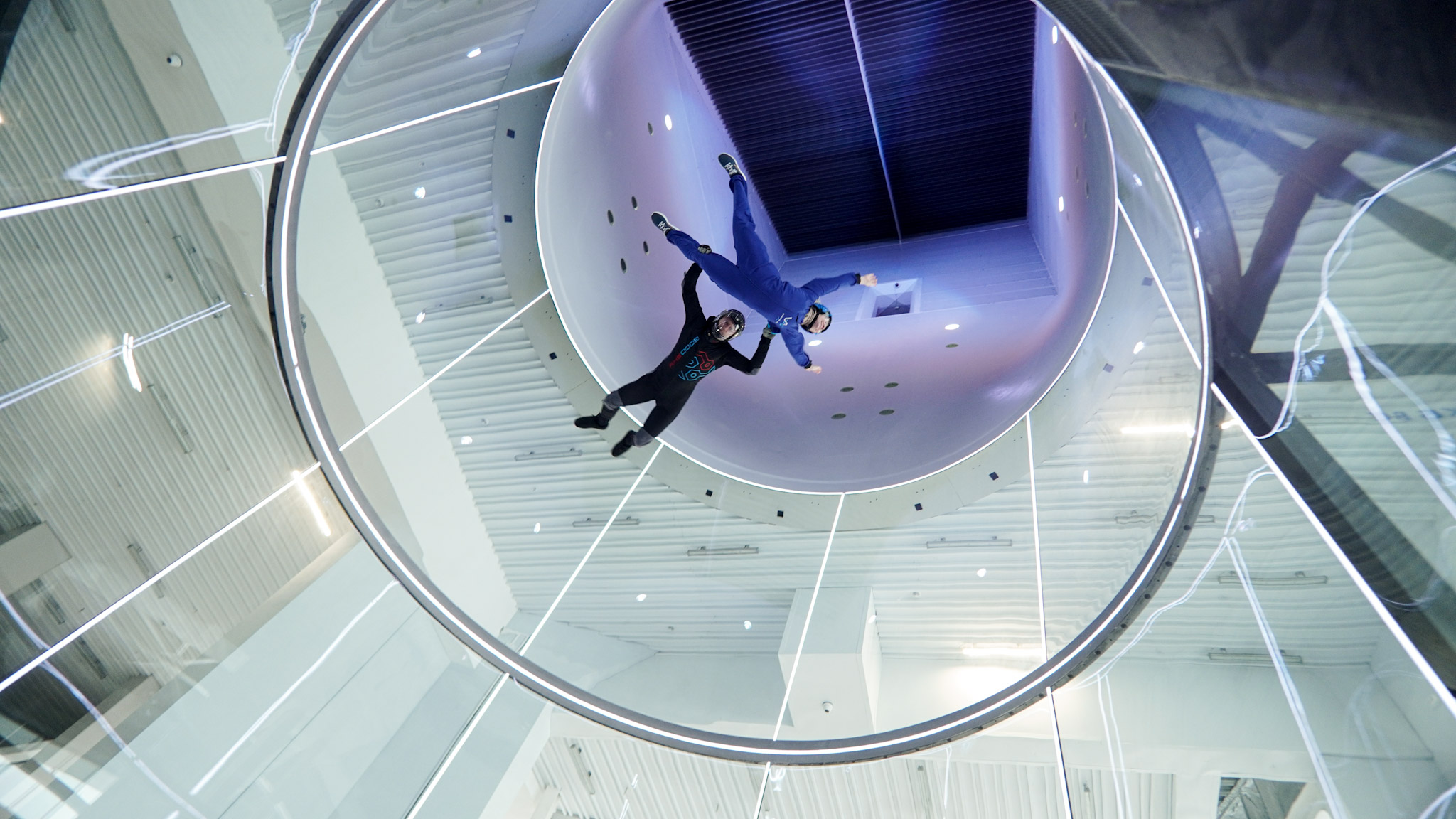

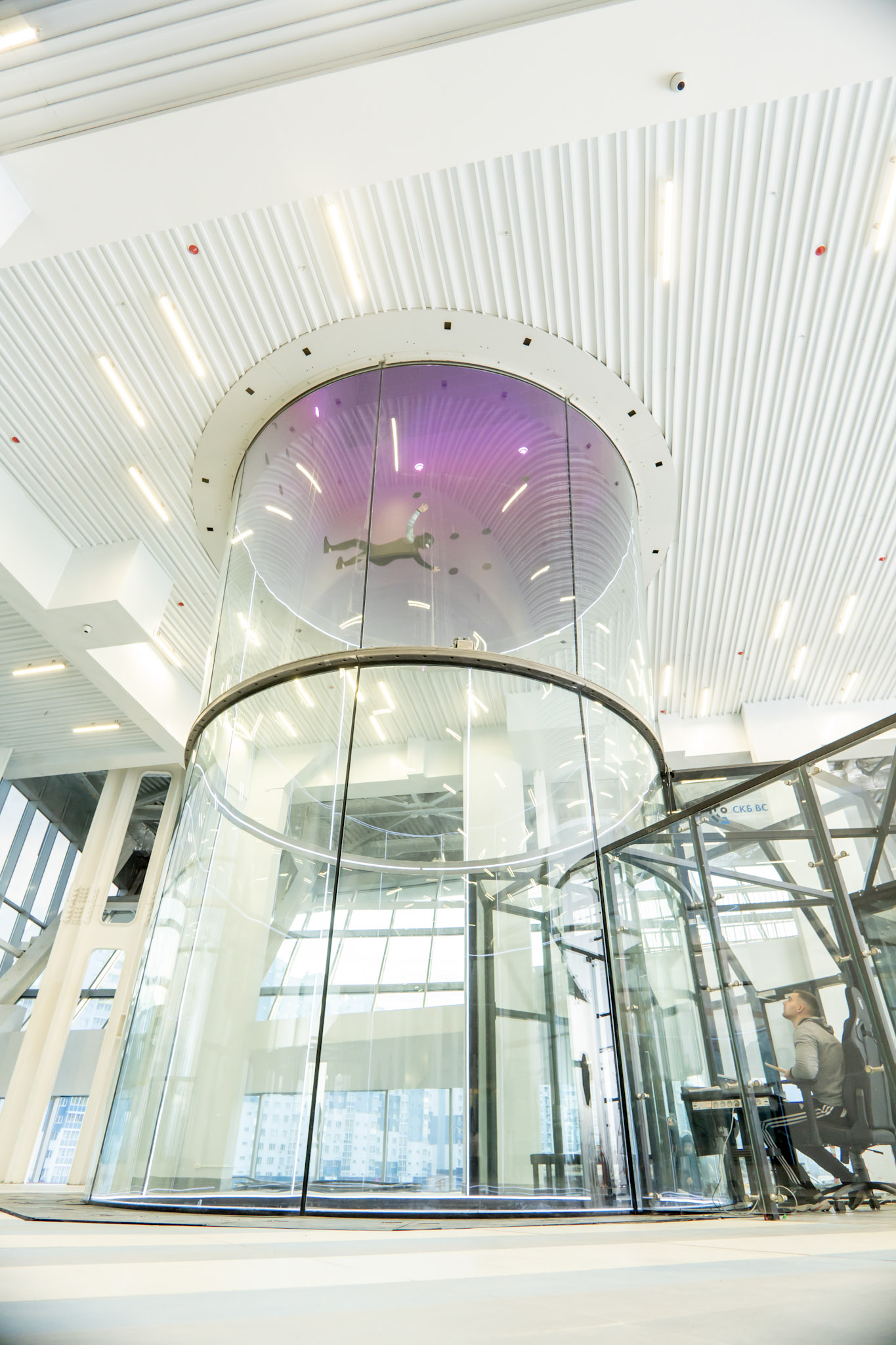

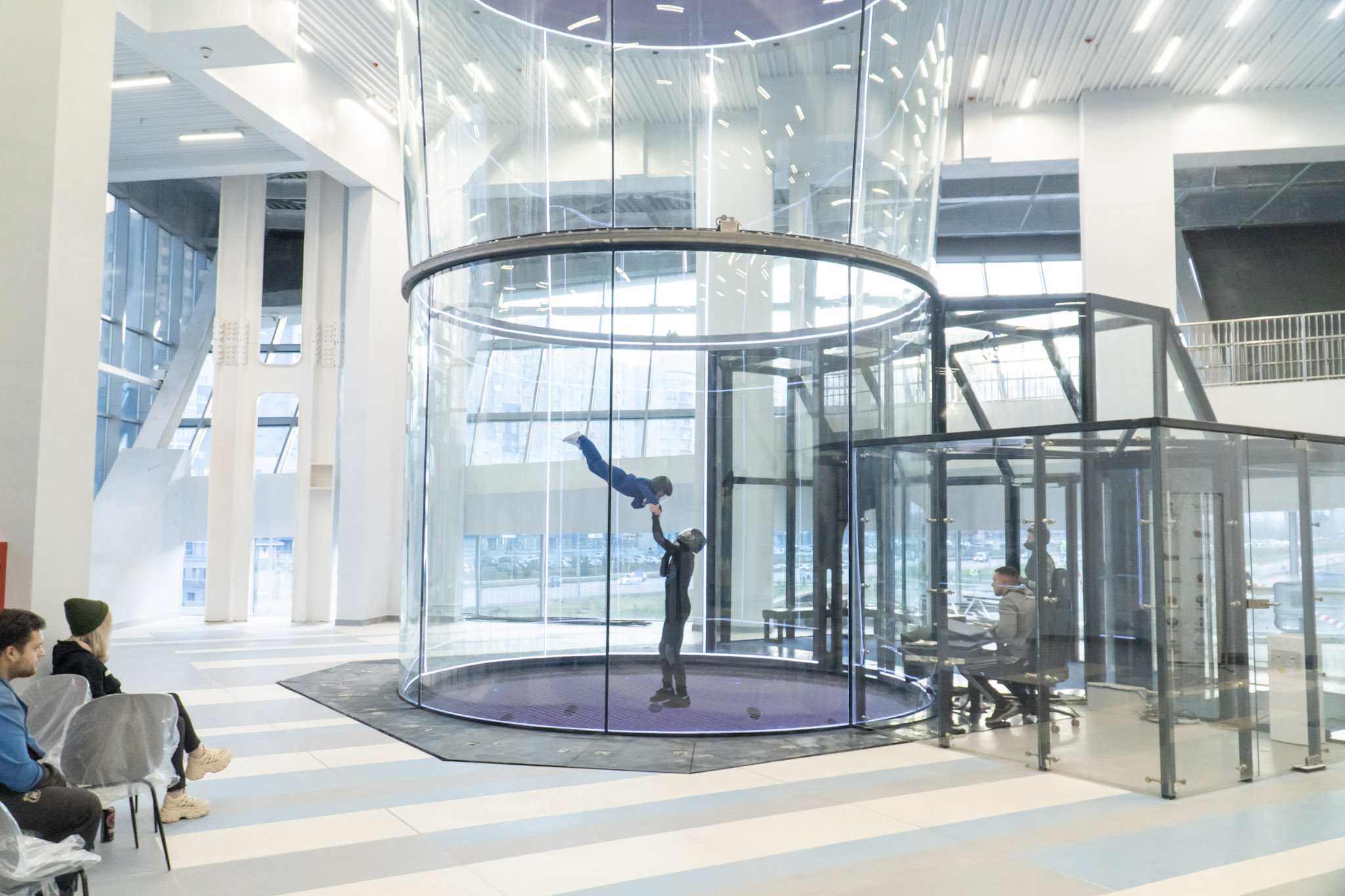

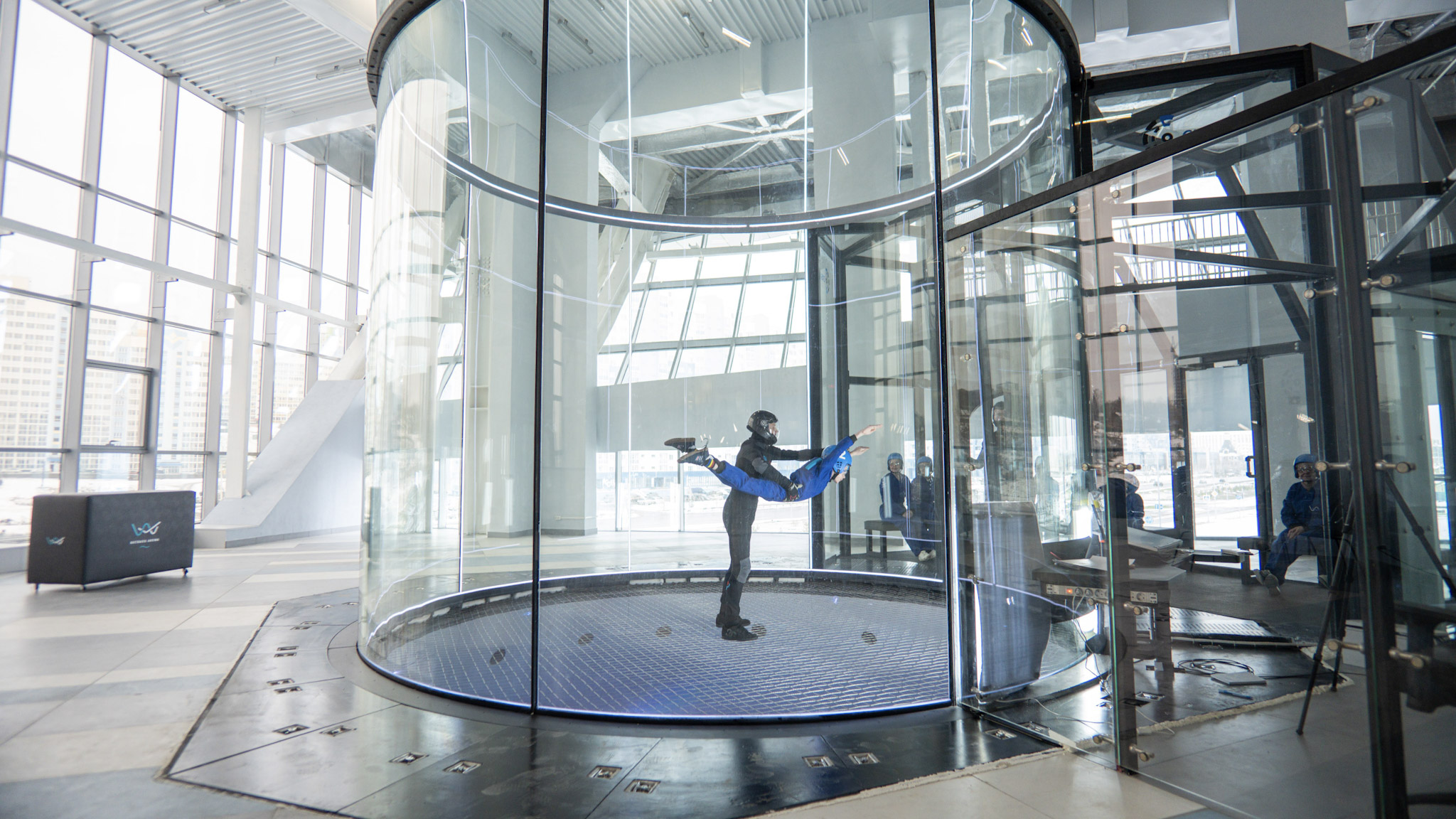

The large 5.2-meter-diameter flight chamber provides an overwhelming area to experience indoor skydiving at its best. The multi-level glass section comprises of a 4-meter-tall cylindrical bottom part and a 4-meter-tall conical upper part. The frameless design allows the best views for both flyers and spectators. Transparent and exceptionally durable chemically strengthened glass guarantees maximum safety even during training sessions with metal gear.

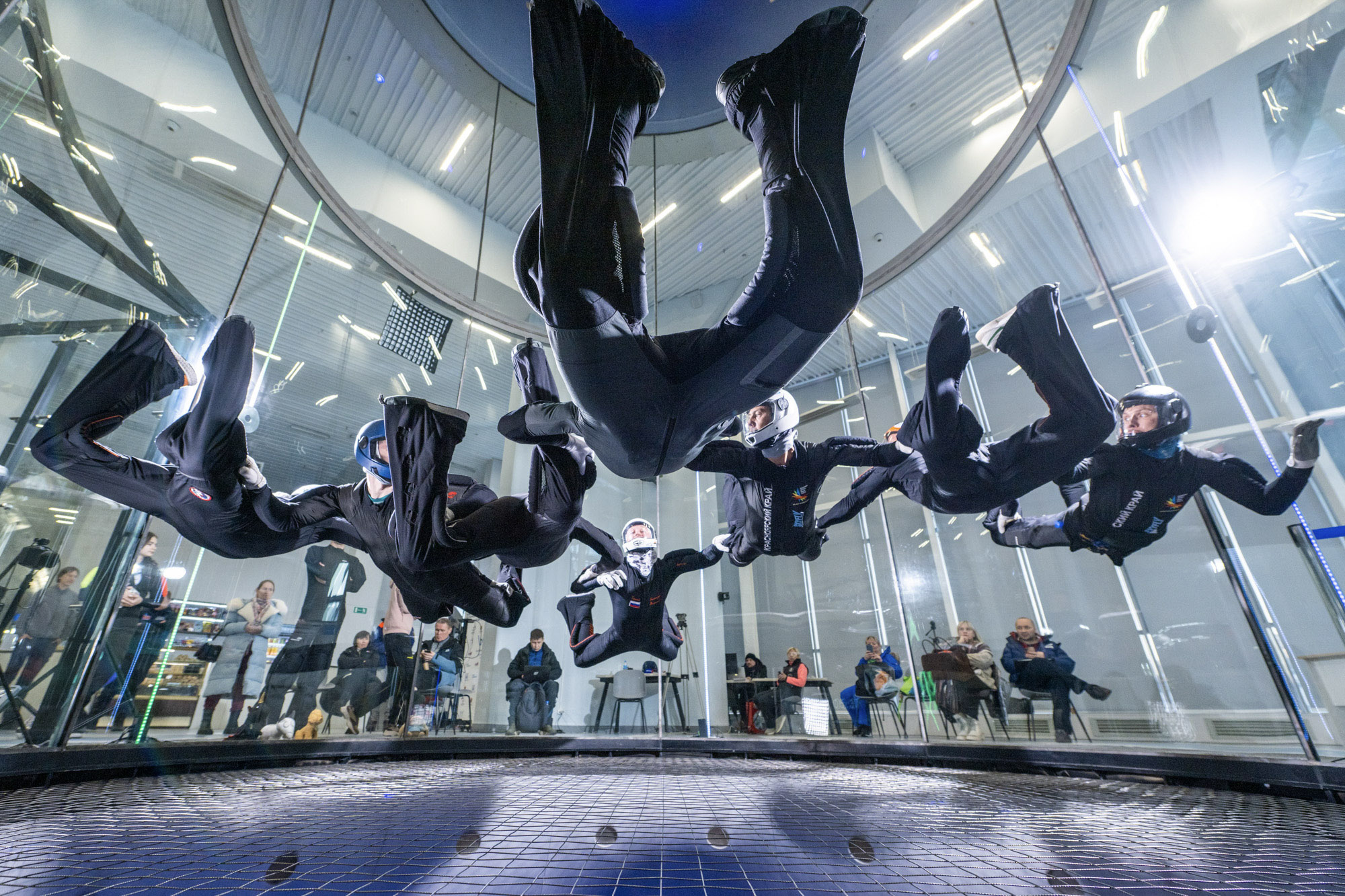

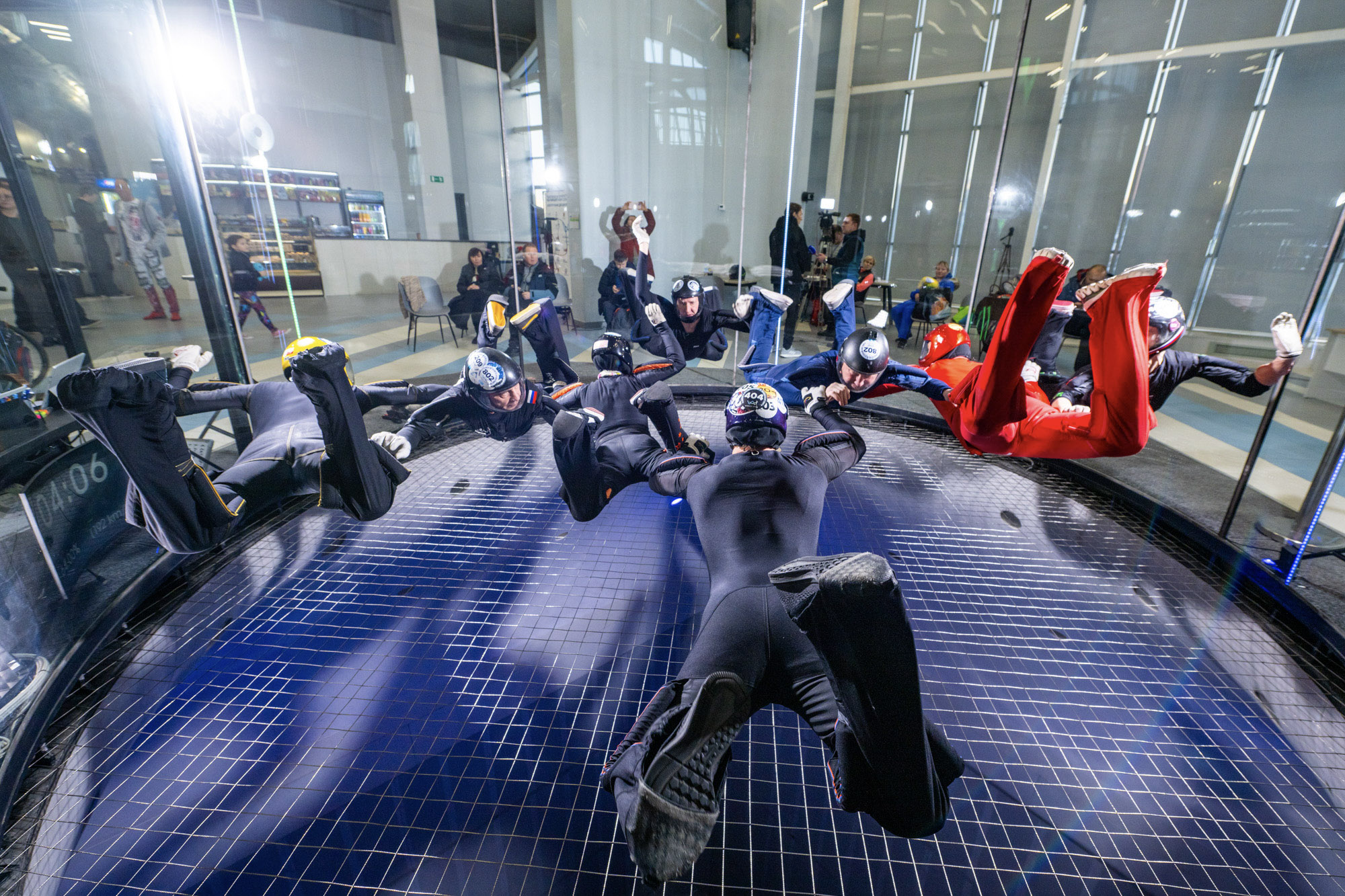

TT52 PRO is an extremely powerful machine suitable for sport training in groups up to 8 persons and military training with full gear. Operational costs are a significant factor in the success of any indoor skydiving project, especially when it comes to big-sized wind tunnels. TT52 PRO’s enhanced aerodynamic design includes 4 extra-large low RMP axial fans with carbon fibre blades located in the vertical air duct. This design benefits the energy efficiency, ensuring lower running costs and a greener approach to indoor skydiving.

Putting safety at the forefront, TT52 PRO features 1.9 flight chamber diffusion ratio, innovative safety net with near-the-wall deflection, and a curved collision safe entrance to the flight chamber. Highly praised by pro flyers, these features create the most secure environment for those who have no experience in indoor skydiving.

World Championship Suitability

The TT52 is the perfect venue to host world championships and other high-level indoor skydiving competitions. Its large flight chamber and industry-leading height enable dynamic disciplines and provide an unparalleled flying experience for athletes. The exceptional performance, safety, and energy efficiency features of the TT52 make it an attractive choice for event organizers and competitors alike.

With its cutting-edge technology and design, the TT52 is a top choice for any indoor skydiving project. From shopping malls to dedicated skydiving centers, the TT52 offers a world-class experience that attracts enthusiasts and casual flyers alike. With its visually striking appearance and exceptional flying capabilities, this wind tunnel is a fantastic investment for businesses looking to create unforgettable experiences for their customers.

To provide a comfortable flying experience in any climate zone, TT52 PRO comes equipped with both an outright ventilation system and an optional active cooling system. In regions where low temperatures are predominant, the ventilation system can further enhance energy efficiency, leading to additional savings of up to 35%. Cooling the airflow is essential for hot climate zones. The active cooling system involves hollow turning vanes that effectively cool the air while keeping the airflow quality at the top.

Specification

General parameters

Flight сhamber inner diameter 5.2 m (17″)
Glass height default 8 m (26’2″)
Glass height maximum 20 m (65’6″)

Dimensions Double Loop

Flight сhamber inner diameter 5.2 m (17″)
Glass height default 8 m (26’2″)
Glass height maximum 20 m (65’6″)

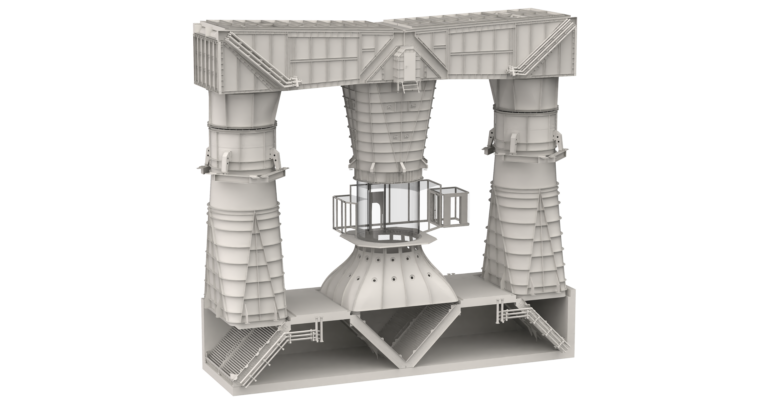

Dimensions Single Loop

Height38.5 m (126’3″)
Length28.5 m (93’5″)
Width11.2 m (36’7″)

Power Requirements

Power capacity (min) 1800 kW
Average time-weighted power consumption 680 kW
Power consumption @ 180 km/h 500 kW
Standard power capacity 1800 kW
Advanced power capacity 2000 kW
Beast power capacity 2240 kW

Performance

Noise level 60 dBa (optional)
Darcy-Weissbach drag coefficient, Xi 0.245
Max. Speed @ Standard power capacity 275 km/h
Max. Speed @ Advanced power capacity 286 km/h
Max. Speed @ Beast power capacity 296 km/h

Flight Chamber

Diameter 5.2 m (17′)
Height (minimum) 21.2 m (69’6″)
Area 21.22 m (69’6″)
Default glass height 8 m (26’2″)
Glass type chemically strengthened, non-shattering
Glass total thickness ≥50 mm
Low iron glass yes
Optional maximum glass height up to 20 m (65’6″)
BASE jumping chamber height 18 m (59′)
Patented safety net maintains long stroke in close proximity to the walls
Safety net tensioner 2 per cable
Speed drop (Diffusion rate) 1.9

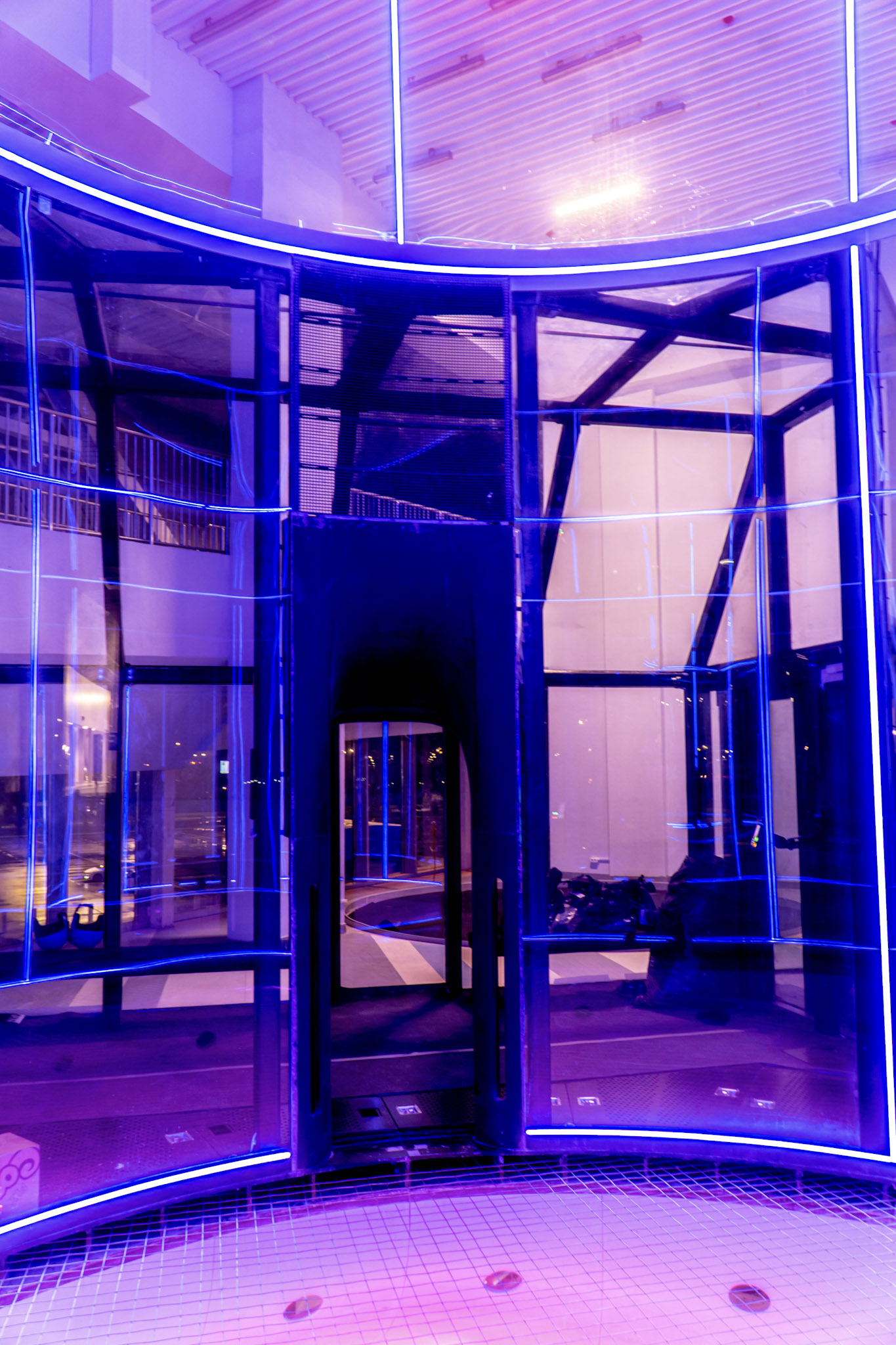

Portal entrance shape curved, collision safe
Portal entrance material impact-dampening rubber
Entrance area speed drop ≤1%

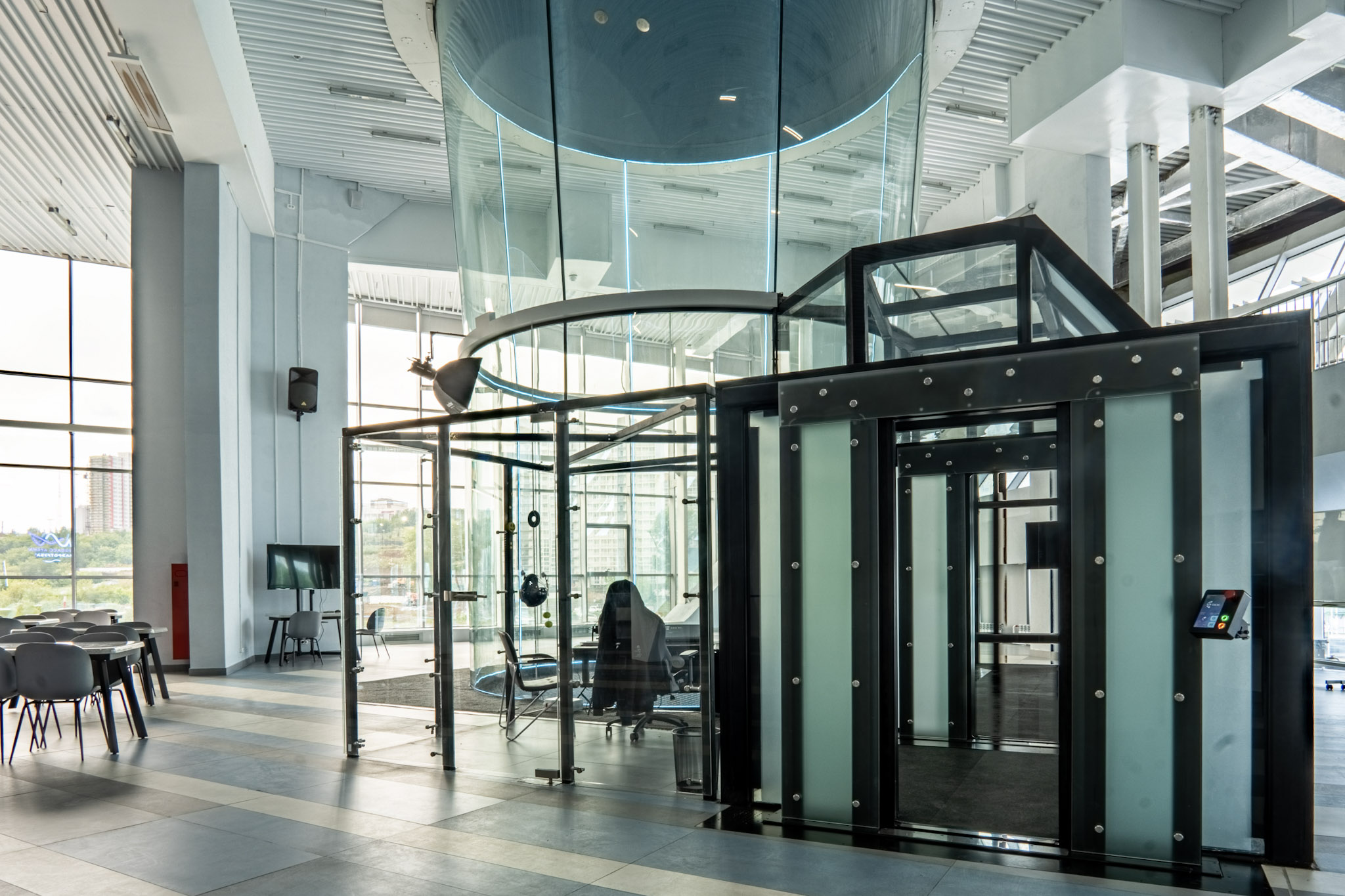

Decompression Chamber

Airlock doors automated
Airlock emergency exit yes
Smooth decompression yes

Axial Fans

Supplier Tunneltech , Germany
Quantity 4
Power (per fan) @ Standard power capaccity 450 kW
Power (per fan) @ Advanced power capacity 500 kW
Power (per fan) @ Beast power capacity 560 kW
Location return vertical airduct
Axel orientation vertical
Diameter 3.37 m (11′)
Effective crossectional area 7.68 sq.m.
Blades material carbon fibre
Blades count 8
Automated lubrication yes

Airducts

Material of FC Airjet (FC Contraction) FRP
Material of FC Diffuser glass
Material of return vertical airducts FRP/steel

Climate Control

Ventilation (a.k.a. Passive Cooling) yes
Max ventilation to airflow ratio 22%
Active Cooling System yes (optional)
Additional drag, caused by active cooling system 0 Pa (No drag)
Active Cooling type through turning vanes
Recommended Chiller Cooling Capacity 1200 kW (4,094,570 BTU/h)

Illumination

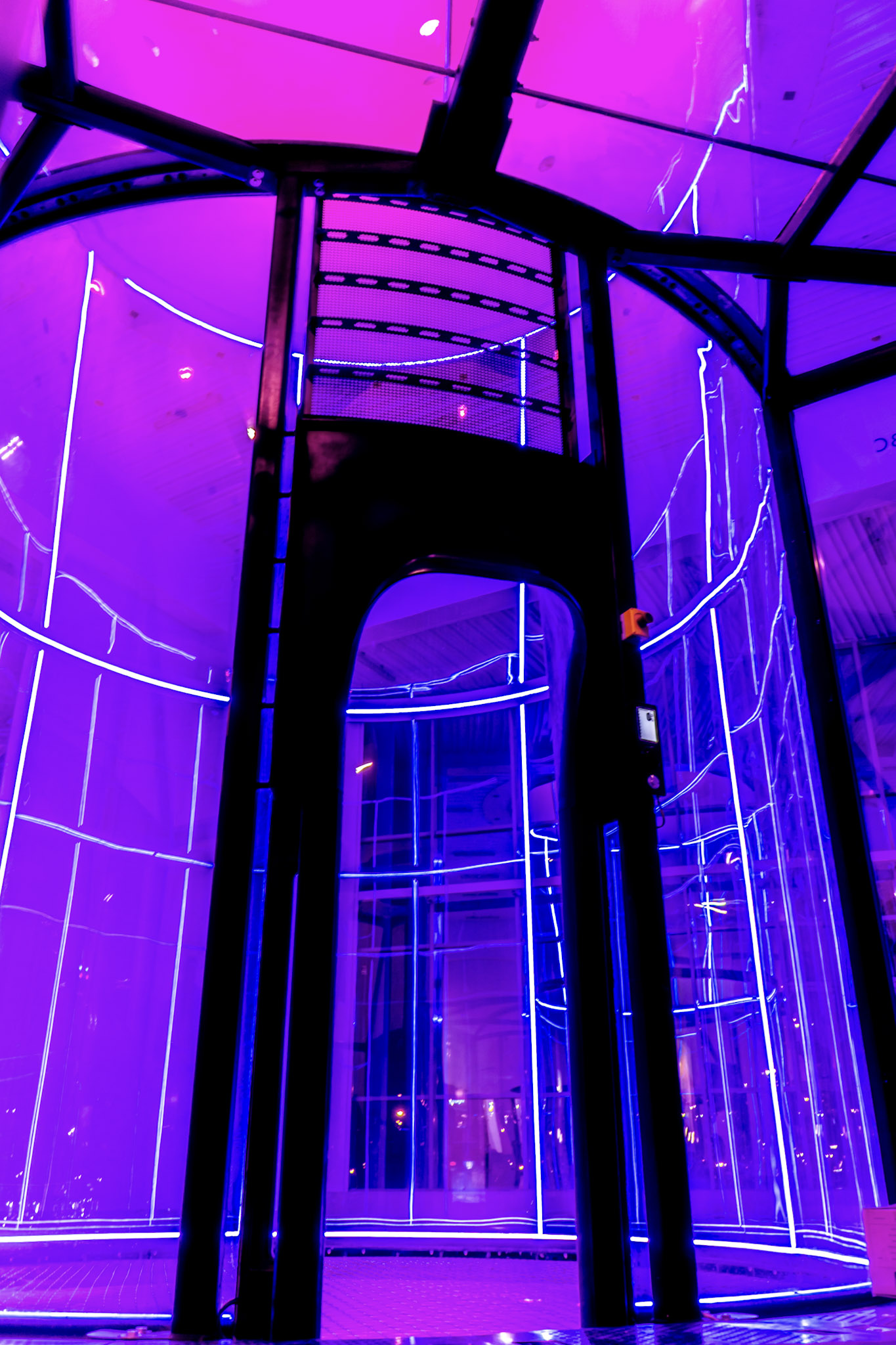

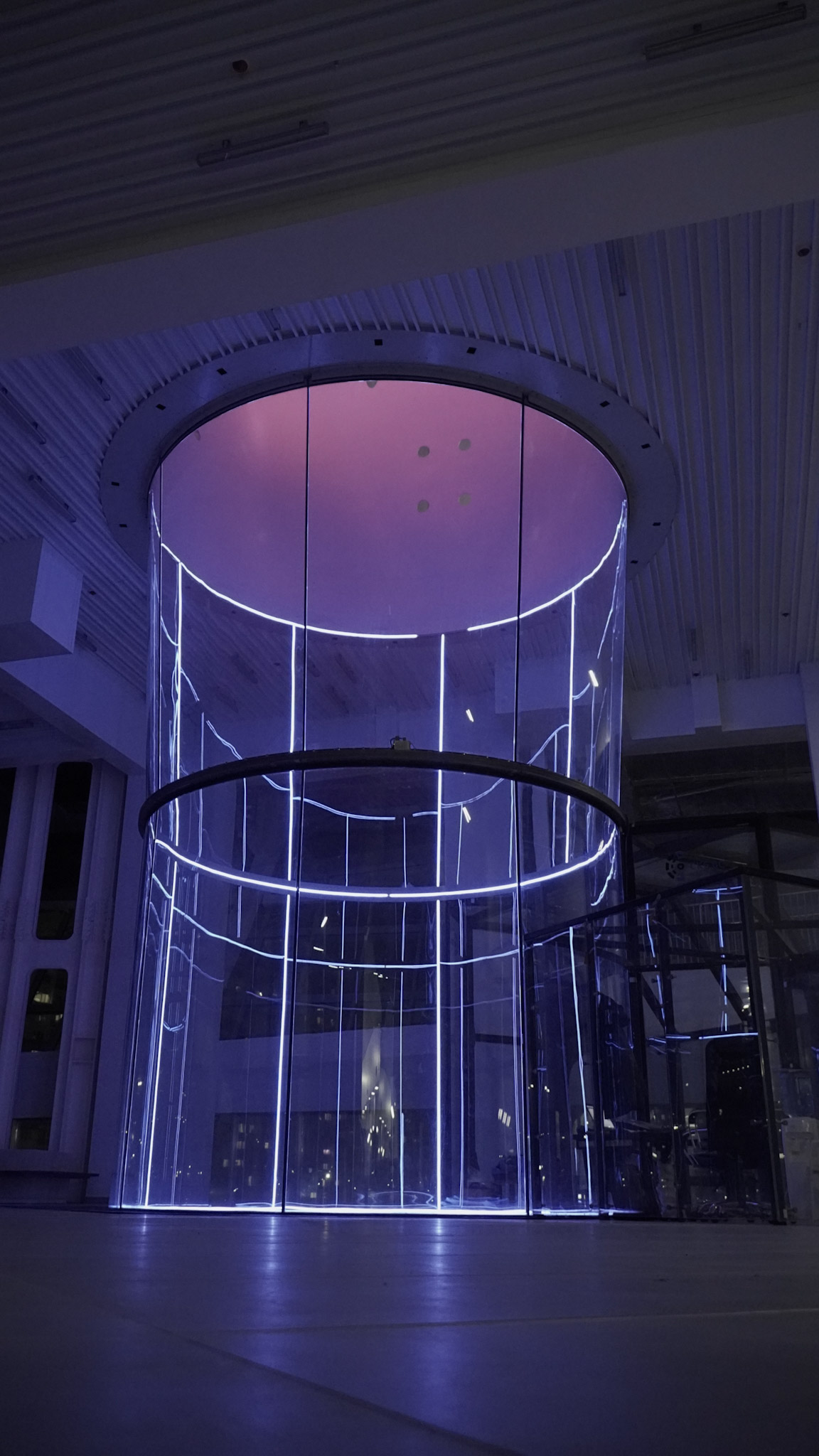

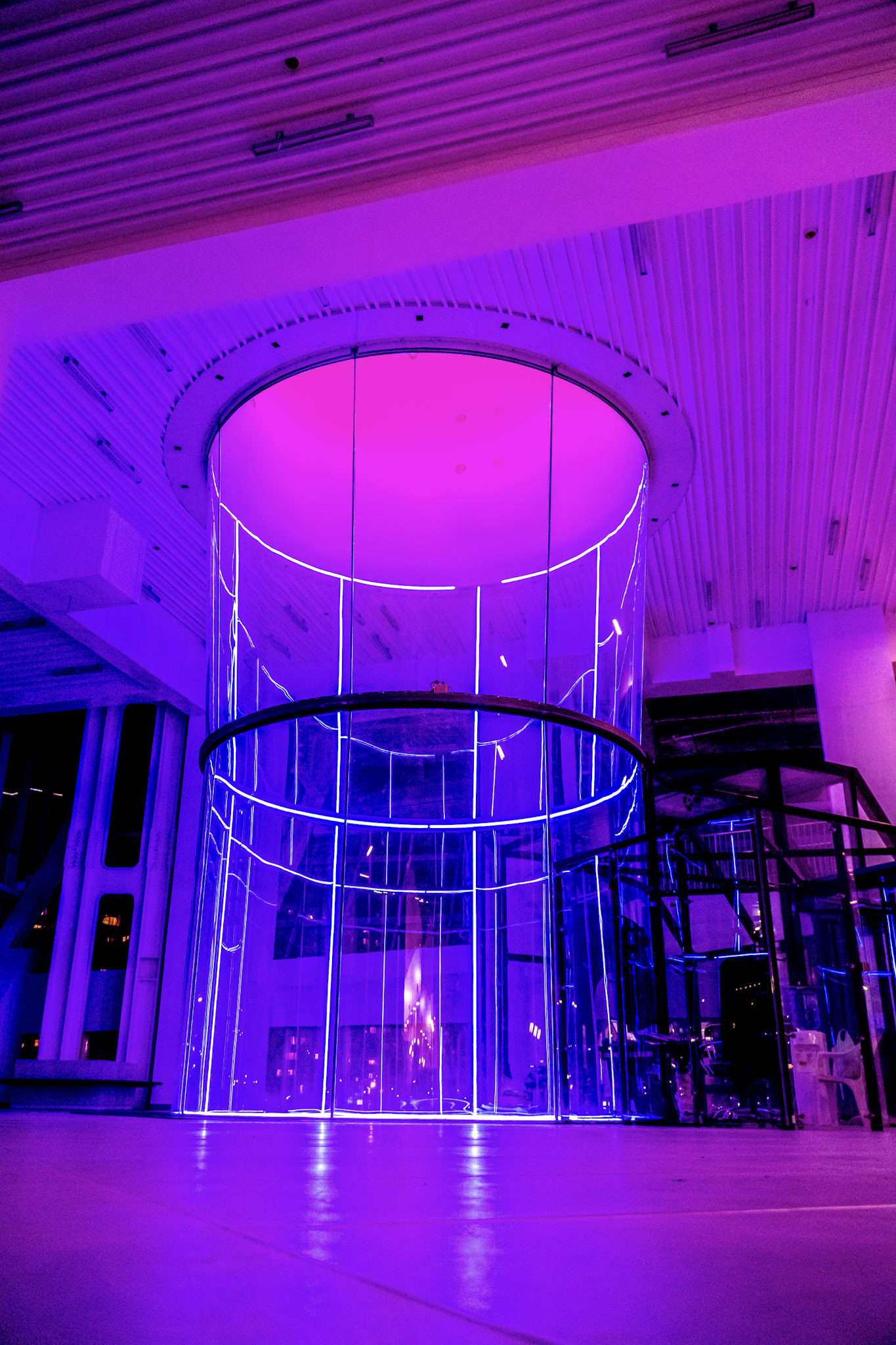

Color LED backlight strips between glass panels yes, flicker-free (optional)
LED Strips power per m 10 W
LED Strips frame rate 60 fps
LED Projectors yes, flicker-free (optional)
LED projectors default number installed (optional) 8 – 32 (optional)
LED projectors max. power 90 W
LED projectors max. luminous flux power R:1950 G:2700 B:750 lumen
LED projector dimming capability 0 – 100%
LED control from Main Panel yes
LED anti-flicker function high frequency PWM
LED projector PWM frequency 1 kHz
LED color depth 24 bit, 16,777,216 colors
LED projector color depth 36 bit, 64 bln colors

Controls

Main panel control display 28″
Touch screen main panel yes
Flight chamber info display 31.5″
Operator desk speed controller autonomous knob
Waiting zone speed controller autonomous knob
Base chamber speed controller autonomous knob
Speed controller knob resolution 0.1%

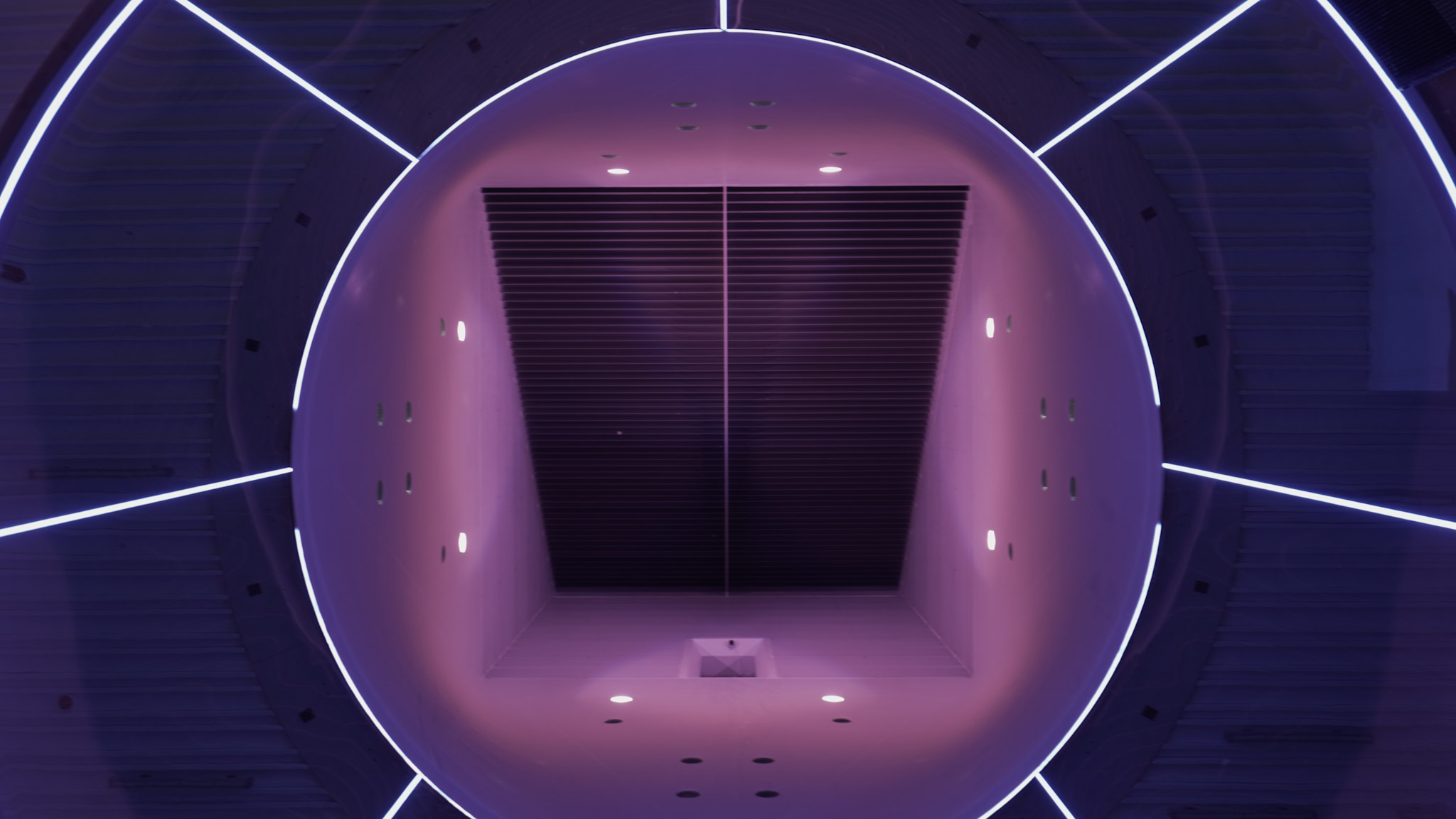

Turning Vanes

Chord 500 mm
Chord-to-Spacing ratio ≥3:1
Material aluminium
Surface treatment anodized
Cooling channels 6
Turning vane heat transfer ratio, per meter @ 10-35m/s airflow speed >105 (±15) W/(m*K)
TT52Pro Double loop (PF52DL) TT52Pro Single loop (PF52SL)

PF52DL Building Requirements (brief) - n/a

PF52DL Technical Documentation can be developed on request.

Please see PF52SL model documentation.

PF52SL Technical Documents (full version). Downloading will be available for registered users.

Document archive contents:

  • PF52SL - Building Requirements (A)
  • PF52SL - Wind tunnel equipment location (T)
  • PF52SL - Equipment loads (E)
  • PF52SL - Equipment bases tolerance requirements (H)
  • PF52SL - Cooling System (C)
  • PF52SL - Cable networks (P)
  • PF52SL - Service floors and ladders (K)
  • PF52SL - Building Markup and Inspection (M)
  • PF52SL - Site work execution program (X)
