TT65 PRO

Overview

Currently the second largest in the world, TT65 PRO is the biggest wind tunnel among economically feasible ones. Its exceptional size and innovative design can accommodate larger teams and more complex manoeuvres, allowing athletes to push the boundaries of their skills and showcase the true potential of indoor skydiving. Oriented to prestige projects, where business is secondary to vision opportunity and publicity. Best for government ventures aiming to leave a long-lasting legacy.

The impressive 6.5-meter-diameter flight chamber makes TT65 PRO an ideal venue for world championships and other high-class indoor skydiving sport events. 10 meters of frameless chemically strengthened glass allow superb transparency and extreme reliability. The glass section is divided into two equally tall levels: the bottom one is cylindrical while the upper one is conical.

To maximize the power and make this wind tunnel suitable for advanced military training, TT65 PRO is equipped with 6 extra-large axial fans with carbon fiber blades. Positioned in the vertical air ducts, the axial fans provide the necessary power without compromising energy efficiency and generating more noise. As a result, despite its size TT65 PRO is an environmentally friendly solution with reduced operating costs. Moreover, the minimal noise emissions make it possible to incorporate TT65 PRO into challenging settings.

As all the wind tunnels by Tunnel Tech, TT65 PRO features a list of important safety enhancements. 1.5 flight chamber diffusion ratio, specially designed safety net with near-the-wall deflection, and a curved flight chamber portal prevent injuries even during the most extreme activities.

For the comfort of the flyers, TT65 PRO’s design includes both an outright ventilation system and an optional active cooling system. The ventilation ensures power-efficient operation whenever the outside temperatures are below 30°C adding up to 35% to energy savings. The hollow turning vanes are used for turbulence-free cooling in hot climate zones. None of the systems affect the airflow quality, thus allowing the best performance with maximum comfort.

TT65 PRO stands as an exceptional solution, tailored to meet the demands of the most ambitious and visionary projects. Whether you’re envisioning a large-scale entertainment complex, a world-class sports training facility, or a cutting-edge military training centre, TT65 PRO is your reliable choice in turning ambitious ideas into remarkable realities. It unlocks opportunities for creativity, performance, and safety that were previously out of reach, ensuring that your venture will set new standards and leave a lasting impact.

Specification

General Parameters

Flight сhamber inner diameter 6.5 m (21’4″)
Glass height default 18m (59′)
Glass height maximum 36 m (118’11”)

Dimensions Double Loop

Height 37.7 m (123’7″)
Length 38.3 m (41’5″)
Width 14 m (45’9″)

Dimensions Single Loop

Height 45 m (147’6″)
Length 30 m (98’4″)
Width 12 m (39’4″)

Power Requirements

Power capacity (min) 3360 kW
Average time-weighted power consumption 1171 kW
Power consumption @ 180 km/h 857 kW
Standard power capacity 3360 kW
Advanced power capacity n/a
Beast power capacity n/a

Performance

Noise level 60 dBA (optional)
Darcy-Weissbach drag coefficient, Xi 0.27
Max. Speed @ Standard power capacity 275 km/h
Max. Speed @ Advanced power capacity 290 km/h

Flight Chamber

Diameter 6.5 m (21’3″)
Height (minimum) 21.5 m (70’5″)
Area 33.16 m (108’8″)
Default glass height 18 m (59′)
Glass type chemically strengthened, non-shattering
Glass total thickness ≥50 mm
Low iron glass yes
Optional maximum glass height up to 36 m (118’11”)
BASE jumping chamber height 19 m (62’3″)
Patented safety net maintains long stroke in close proximity to the walls
Safety net tensioner 2 per cable
Speed drop (Diffusion rate) 1.47
Portal entrance shape curved, collision safe
Portal entrance material impact-dampening rubber
Entrance area speed drop ≤1%

Decompression Chamber

Airlock doors automated
Airlock emergency exit yes
Smooth decompression yes
Transit time of customer groups to/from the flight chamber <1 min

Axial Fans

Supplier Tunneltech , Germany
Quantity 6
Power (per fan) @ Standard power capacity 560 kW
Power (per fan) @ Advanced power capacity n/a
Location return vertical airduct
Axel orientation vertical
Diameter 3.37 m (11′)
Effective crossectional area 7.68 m (25’2″)
Blades material carbon fibre
Blades count 8
Automated lubrication yes

Airducts

Material of FC Airjet (FC Contraction) FRP
Material of FC Diffuser glass
Material of return vertical airducts FRP/steel

Climate Control

Ventilation (a.k.a. Passive Cooling) yes
Max ventilation to airflow ratio custom
Active Cooling System yes (optional)
Additional drag, caused by active cooling system 0 Pa (No drag)
Active Cooling type through turning vanes
Recommended Chiller Cooling Capacity 2400 kW (8,189,140 BRU/h))

Illumination

Color LED backlight strips between glass panels yes, flicker-free (optional)
LED Strips power per m 10 W
LED Strips frame rate 60 fps
LED Projectors yes, flicker-free (optional)
LED projectors default number installed (optional) 8 – 32 (optional)
LED projectors max. power 90 W
LED projectors max. luminous flux power R:1950 G:2700 B:750 lumen
LED projector dimming capability 0 – 100%
LED control from Main Panel yes
LED anti-flicker function high frequency PWM
LED projector PWM frequency 1 kHz
LED color depth 24 bit, 16,777,216 colors
LED projector color depth 36 bit, 64 bln colors

Controls

Main panel control display 28″
Touch screen main panel yes
Flight chamber info display 31.5″
Operator desk speed controller autonomous knob
Waiting zone speed controller autonomous knob
Base chamber speed controller autonomous knob
Speed controller knob resolution 0,1%

Turning Vanes

Chord 500 mm
Chord-to-Spacing ratio ≥3:1
Material aluminium
Surface treatment anodized
Cooling channels 6
Turning vane heat transfer ratio, per meter @ 10-35m/s airflow speed >105 (±15) W/(m*K)

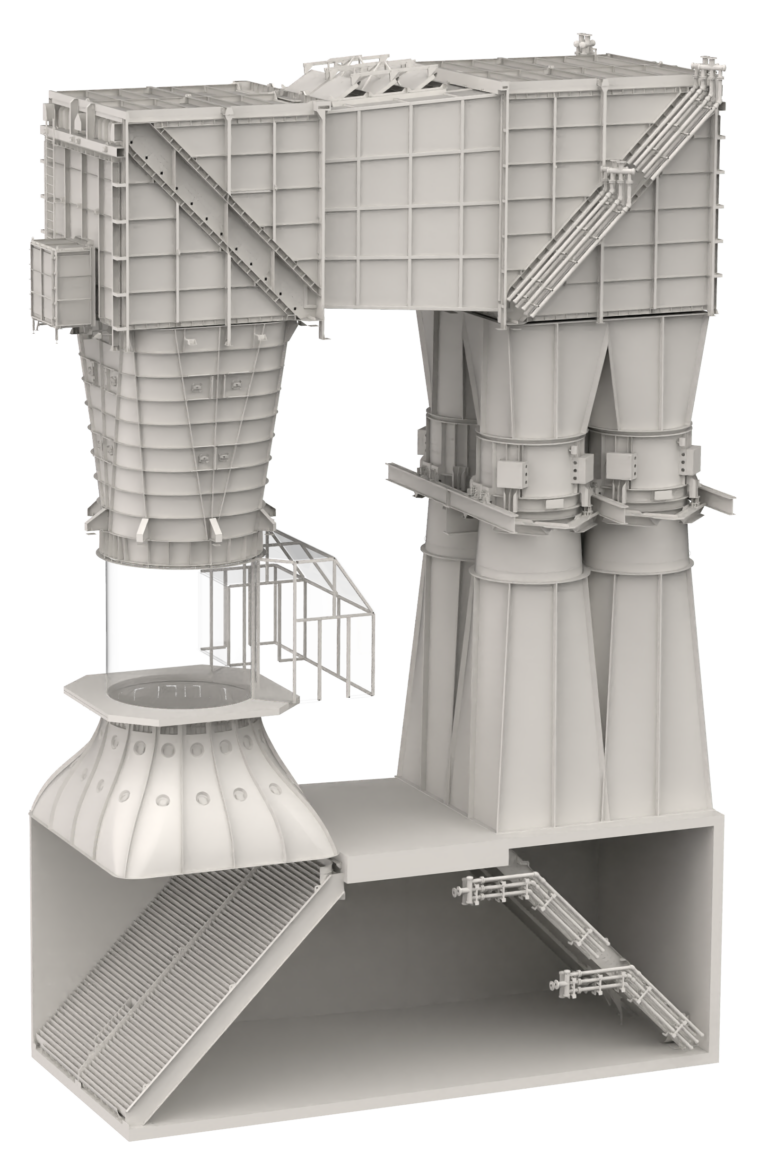

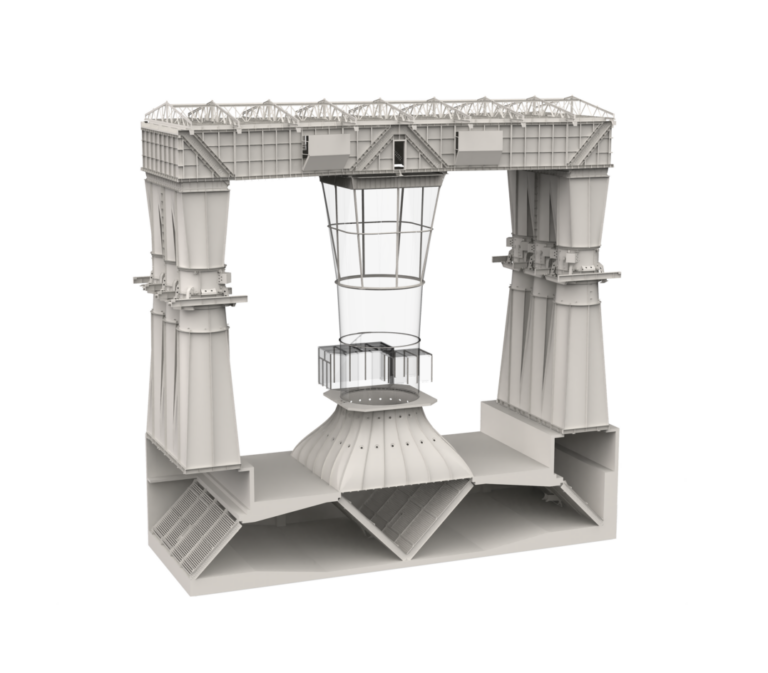

TT65Pro Double loop (PF65DL) TT65Pro Single loop (PF65SL)

PF65SL Building Requirements (brief) - n/a

PF65DL Technical Documents (full version). Downloading will be available for registered users.

Document archive contents:

  • PF65DL - Building Requirements (A)
  • PF65DL - Wind tunnel equipment location (T)
  • PF65DL - Equipment loads (E)
  • PF65DL - Equipment bases tolerance requirements (H)
  • PF65DL - Cooling System (C)
  • PF65DL - Cable networks (P)
  • PF65DL - Service floors and ladders (K)
  • PF65DL - Building Markup and Inspection (M)
  • PF65DL - Site work execution program (X)

PF65SL Technical Documents can be developed on request.

Please see PF65DL model documentation.
